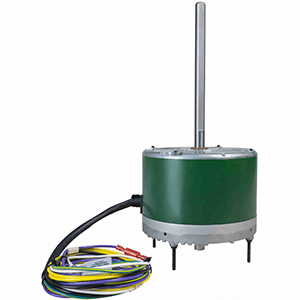

Evergreen OM 1/3 hp Condenser Fan Motor, 825/1075 rpm, 208-230V, 2-Speed
SKU
REG-6303S
| Dimension | 7.06Hx15.56Wx6.69D |
|---|---|
| Brand | Regal Beloit |
Evergreen OM - Retrofit Condenser Fan Motor (Replaces PSC and Shaded Pole Motors). Electronically Commutated (ECM), Electronically Protected. 1/3 HP (Replaces 1/3-1/12). Two Operating Speeds (Constant Speed), 1075 RPM replaces motors rated 1000-1100 RPM, 825 RPM replaces motors rated 800-850 RPM. 208-230 Voltage (Allowable Voltage Range 196-264), Single-Phase Input, 50-60 Hz, Totally Enclosed Air Over. Class B Insulation, -20 to 60 degree Celsius Ambient. Rotation: Reversible (Factory Set To CCW Lead End). Permanently Lubricated Ball Bearing. Shaft: 1/2
